Bicron D-Frame DC Solenoids
DESIGN
Bicron D-Frame DC Solenoids offer the simple, cost effectiveness of an “open” frame design for rugged solenoid applications.
FEATURES
Two-piece frame construction for dependability and easy installation with the availability of two mounting surfaces. Available as push or pull types. Standard duty cycles offered are 10%, 25% and 100%.
Conventional applications for D-Frame DC solenoids include ATM machines and gaming machines. Medical related applications include blood & gas analyzers.
The selection table below includes standard D-Frame solenoids. Modified standards are also available. For custom types or modified standard types please use our Linear DC Solenoid Design Worksheet to identify the unique features desired.
Visit our Technical Guide for Bicron DC Solenoids for important technical details related to the design and operation of Bicron solenoids including a glossary of solenoid terms.
| MODEL NUMBER | PLUNGER DIAMETER (in. [mm]) |
BODY SIZE WIDTH (in. [mm]) |
BODY SIZE LENGTH (in. [mm]) |
FORCE (oz.) |
Stroke (in.) |
DUTY CYCLE | POWER (watts) |
|---|---|---|---|---|---|---|---|
SD0420N
|
0.16 [4] | 0.39 [10] | 0.80 [20] | 0.70 | 0.04 | 100% | 1.1 |
| 0.40 | 0.08 | ||||||
| 0.20 | 0.12 | ||||||
| 0.10 | 0.16 | ||||||
| 3.5 | 0.04 | 25% | 4.4 | ||||
| 2.8 | 0.08 | ||||||
| 1.8 | 0.12 | ||||||
| 0.50 | 0.16 | ||||||
| 6.3 | 0.04 | 10% | 11 | ||||
| 3.5 | 0.08 | ||||||
| 1.8 | 0.12 | ||||||
| 0.70 | 0.16 | ||||||
SD0425N |
0.16 [4] | 0.43 [11] | 0.99 [25] | 4 | 0.05 | 100% | 3 |
| 1.5 | 0.10 | ||||||
| 0.80 | 0.15 | ||||||
| 0.50 | 0.20 | ||||||
| 24 | 0.05 | 25% | 12 | ||||
| 16.5 | 0.10 | ||||||
| 10.2 | 0.15 | ||||||
| 7.5 | 0.20 | ||||||
| 50.1 | 0.05 | 10% | 30 | ||||
| 41.8 | 0.10 | ||||||
| 36.2 | 0.15 | ||||||
| 33.8 | 0.20 | ||||||

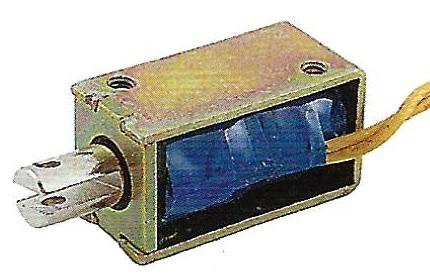

SD0730N |
0.28 [7] | 0.55 [14] | 1.18 [30] | 4.4 | 0.04 | 100% | 2.2 |
| 1.9 | 0.08 | ||||||
| 1.1 | 0.12 | ||||||
| 0.70 | 0.16 | ||||||
| 14.5 | 0.04 | 25% | 8.8 | ||||
| 8.8 | 0.08 | ||||||
| 5.6 | 0.12 | ||||||
| 3.5 | 0.16 | ||||||
| 35 | 0.04 | 10% | 22 | ||||
| 19.4 | 0.08 | ||||||
| 14.1 | 0.12 | ||||||
| 10.2 | 0.16 | ||||||
SD0837N |
0.31 [8] | 0.79 [20] | 1.45 [37] | 10.2 | 0.08 | 100% | 3.4 |
| 3.5 | 0.16 | ||||||
| 0.90 | 0.24 | ||||||
| 0.40 | 0.32 | ||||||
| 31.4 | 0.08 | 25% | 13.6 | ||||
| 17.6 | 0.16 | ||||||
| 10.2 | 0.24 | ||||||
| 5.3 | 0.32 | ||||||
| 46 | 0.08 | 10% | 34 | ||||
| 34 | 0.16 | ||||||
| 22 | 0.24 | ||||||
| 14 | 0.32 | ||||||
SD0947N |
0.35 [9] | 0.75 [19] | 1.85 [47] | 13.1 | 0.08 | 100% | 4.3 |
| 7.1 | 0.16 | ||||||
| 3.2 | 0.24 | ||||||
| 1.4 | 0.32 | ||||||
| 31.8 | 0.08 | 25% | 15.8 | ||||
| 21.2 | 0.16 | ||||||
| 14.1 | 0.24 | ||||||
| 8.8 | 0.32 | ||||||
| 63.5 | 0.08 | 10% | 43 | ||||
| 44.1 | 0.16 | ||||||
| 31.8 | 0.24 | ||||||
| 21.2 | 0.32 | ||||||
SD1032N |
0.39 [10] | 0.94 [24] | 1.25 [31] | 17.6 | 0.08 | 100% | 4.5 |
| 8.8 | 0.16 | ||||||
| 4.4 | 0.24 | ||||||
| 3.5 | 0.32 | ||||||
| 48.5 | 0.08 | 25% | 18 | ||||
| 35.3 | 0.16 | ||||||
| 22.1 | 0.24 | ||||||
| 13.2 | 0.32 | ||||||
| 79.4 | 0.08 | 10% | 45 | ||||
| 66.1 | 0.16 | ||||||
| 48.5 | 0.24 | ||||||
| 31.8 | 0.32 | ||||||
SD1152N |
0.44 [11] | 1.00 [25] | 2.05 [52] | 28.2 | 0.08 | 100% | 5 |
| 14.1 | 0.16 | ||||||
| 7.9 | 0.24 | ||||||
| 6.3 | 0.32 | ||||||
| 60 | 0.08 | 25% | 20 | ||||
| 45.9 | 0.16 | ||||||
| 35.3 | 0.24 | ||||||
| 24.7 | 0.32 | ||||||
| 84.7 | 0.08 | 10% | 50 | ||||
| 70.6 | 0.16 | ||||||
| 60 | 0.24 | ||||||
| 49.4 | 0.32 | ||||||
SD1240N |
0.47 [12] | 0.94 [24] | 1.57 [40] | 27.6 | 0.08 | 100% | 4.5 |
| 7.1 | 0.16 | ||||||
| 1.8 | 0.24 | ||||||
| 0.50 | 0.32 | ||||||
| 49.3 | 0.08 | 25% | 18 | ||||
| 28.2 | 0.16 | ||||||
| 17.6 | 0.24 | ||||||
| 10.6 | 0.32 | ||||||
| 84.7 | 0.08 | 10% | 45 | ||||
| 63.5 | 0.16 | ||||||
| 42.3 | 0.24 | ||||||
| 28.2 | 0.32 | ||||||
SD1253N |
0.47 [12] | 1.06 [27] | 2.09 [53] | 28.2 | 0.08 | 100% | 6 |
| 14.1 | 0.16 | ||||||
| 7.1 | 0.24 | ||||||
| 5.3 | 0.32 | ||||||
| 63.5 | 0.08 | 25% | 24 | ||||
| 49.4 | 0.16 | ||||||
| 35.3 | 0.24 | ||||||
| 24.7 | 0.32 | ||||||
| 91.7 | 0.08 | 10% | 60 | ||||
| 77.6 | 0.16 | ||||||
| 67 | 0.24 | ||||||
| 52.9 | 0.32 |
Modified Standard designs are available.
D-Frame Solenoids are also available as push type models.
